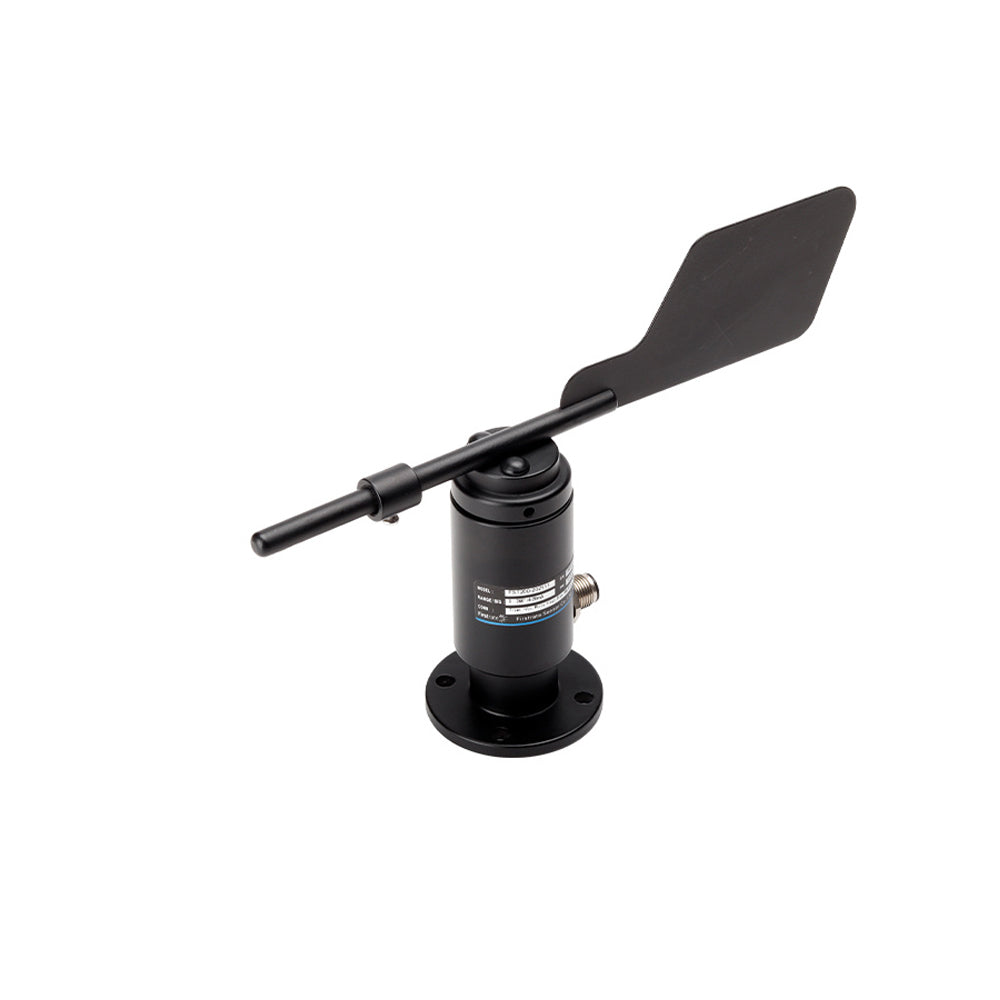

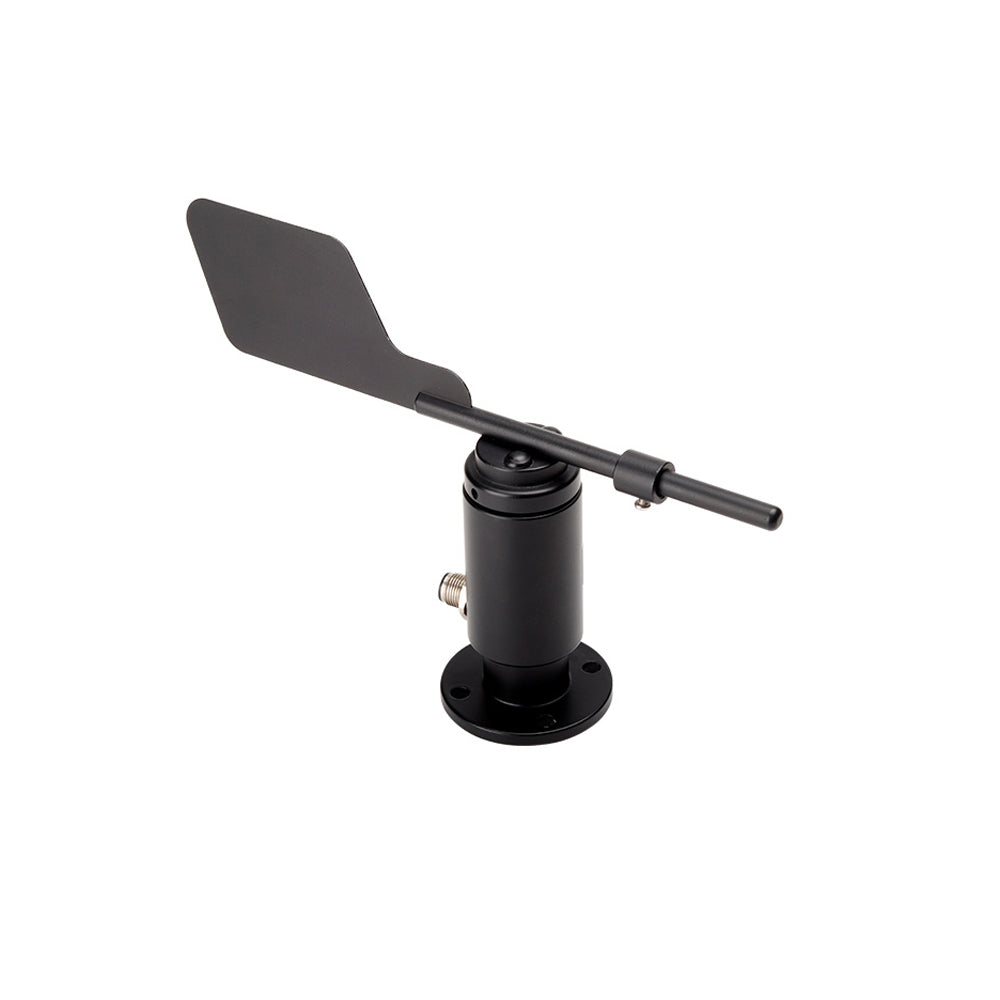

Wind Sensor
Features
Non-contact magnetic sensing
Developed on the principle of non-contact magnetic sensing for accurate and stable wind direction measurement.
Full 0–360° measuring range
Covers the complete circle of wind direction.
High-precision data
Accuracy of ±3° from a built-in high-performance sensor.
Stainless steel vane, full-metal housing
Aluminium alloy body with polyester coating for corrosion resistance and strong-wind durability; the vane is stainless steel for harsh outdoor environments.
Fault-tolerant wiring protection
The sensor is not damaged if it is wired incorrectly.
CE EMC with lightning and surge protection
Multi-level lightning and surge protection design for outdoor use.
Wide 15–30V DC supply
Works across a wide 15–30V DC voltage range.
- Based on non-contact magnetic sensing technology for accurate and stable wind direction measurement
- Built-in high-performance sensor ensures high-precision and reliable data collection
- Rugged full-metal housing offers excellent corrosion resistance and withstands strong winds
- Weather vane is made of stainless steel, suitable for operation in harsh outdoor environments
- Fault-tolerant circuit design prevents sensor damage in case of incorrect wiring
- Complies with CE EMC standards, featuring multi-level lightning and surge protection
- Operates over a wide voltage range of 15–30V DC
Specifications
Models
Measurement
| Measuring range | 0–360° |
|---|---|
| Start wind speed | ≤0.5 m/s |
| Accuracy | ±3° |
| Wind resistance | >70 m/s (30 min) |
Output
| Output signal | 4–20 mA, 0–5V DC, 0–10V DC, RS485 (Modbus RTU) |
|---|
Electrical
| Operating voltage | 15–30V DC |
|---|
Enclosure & Environment
| Protection level | IP65 |
|---|---|
| Operating temperature | -20 °C–+85 °C |
| Working humidity | 0%–95% (no condensation) |
| Electrostatic protection | 15 kV |
| Main material | Aluminum alloy / polyester coating |
