Soil Sensor
Features
Three-in-one soil measurement
Measures soil temperature, volumetric water content and electrical conductivity (EC) in a single probe.
Real-time monitoring at different depths
Tracks the temperature and salt content of soil at different depths as conditions change.
Direct-burial, corrosion-proof sealing
Sealed housing can be buried directly in the soil without corrosion.
High accuracy, fast response
±0.5 °C temperature accuracy and ≤1 s response time with high data transmission efficiency.
RS485 Modbus-RTU output
Standard Modbus-RTU protocol (default address 01) for easy system integration.
Wide application range
Less affected by geology; suited to water-saving irrigation, greenhouses, weather and environmental monitoring.

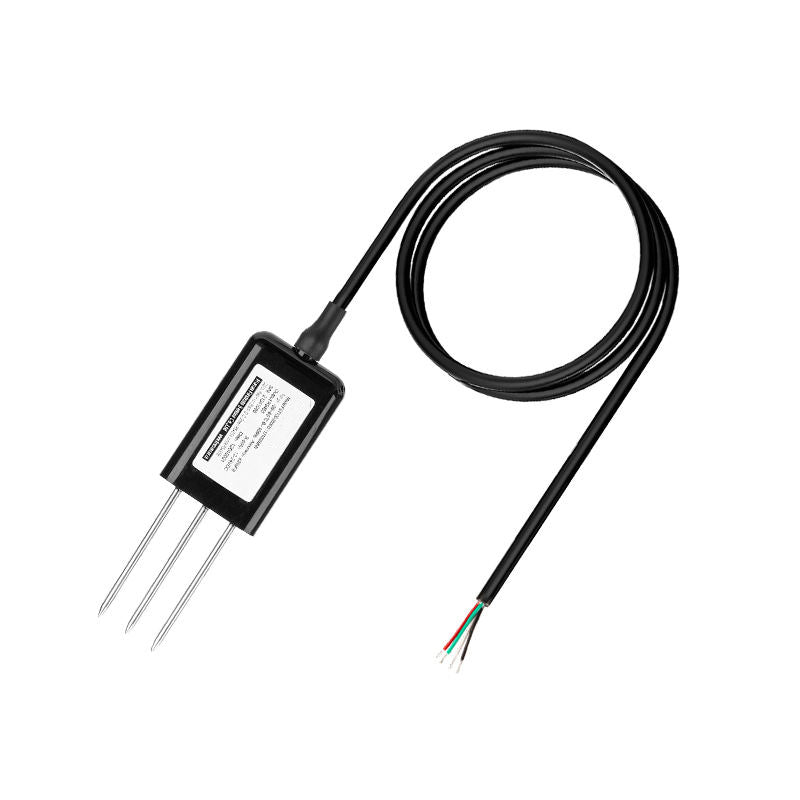

The SEN101-2006A soil temperature and humidity + conductivity sensor is ideal for applications requiring the measurement of soil temperature, humidity, and salinity. It is particularly well-suited for water-saving agricultural irrigation, weather monitoring, environmental monitoring, greenhouses, flower and vegetable cultivation, grass pastures, rapid soil testing, plant cultivation, and scientific research. This versatile sensor supports a range of environments where accurate measurement of soil conditions is essential.
- Real-time temperature, humidity and salt monitoring function can measure
the temperature and salt content of soil at different depths
- It has good sealing performance and can be directly buried in the soil for use without corrosion.
- High measurement accuracy, reliable performance, fast response speed, and high data transmission efficiency
- Less affected by geology and has a wide range of applications
Specifications
Models
Measurement
| Measurement parameters | Soil temperature, soil volumetric water content, soil electrical conductivity (EC value) |
|---|---|
| Temperature range | −40 to 85 °C |
| Water content range | 0–100% |
| Conductivity (salt) range | 0–5000 µS/cm |
| Accuracy | Temperature ±0.5 °C; humidity ±3% (0–50%), ±5% (51–100%); conductivity ±2% |
| Resolution | Temperature 0.1 °C; humidity 0.1% (0–50%), 1% (51–100%); conductivity 1 µS/cm |
| Response time | ≤1 s |
Output
| RS485 | Standard Modbus-RTU protocol, default address 01 |
|---|
Electrical
| Supply voltage | 12–24 V DC |
|---|---|
| Connection | Direct lead |
Physical & Environment
| Operating temperature | −40 to 80 °C |
|---|---|
| Stabilization time | 3 s after power-on |
| Sealing material | ABS engineering plastic, epoxy resin |
| Probe length | 55 mm |
| Probe diameter | 3 mm |
