RS485/4-20mA Stainless Steel Tipping Bucket Rain Gauge Sensor

RS485/4-20mA Stainless Steel Tipping Bucket Rain Gauge Sensor

Regular price $399.00 USD
Regular price Sale price $399.00 USD
Sale Sold out
Shipping calculated at checkout.

In stock

  • 0.2 mm rainfall resolution – Each tipping-bucket pulse represents 0.2 mm of rainfall, with ≤±3% accuracy.
  • Stainless-steel construction – Stainless-steel shell and rain-bearing mouth with a smooth finish for low stagnation error.
  • Anti-clogging funnel mesh – Mesh stops leaves and debris from blocking the rainfall inlet.

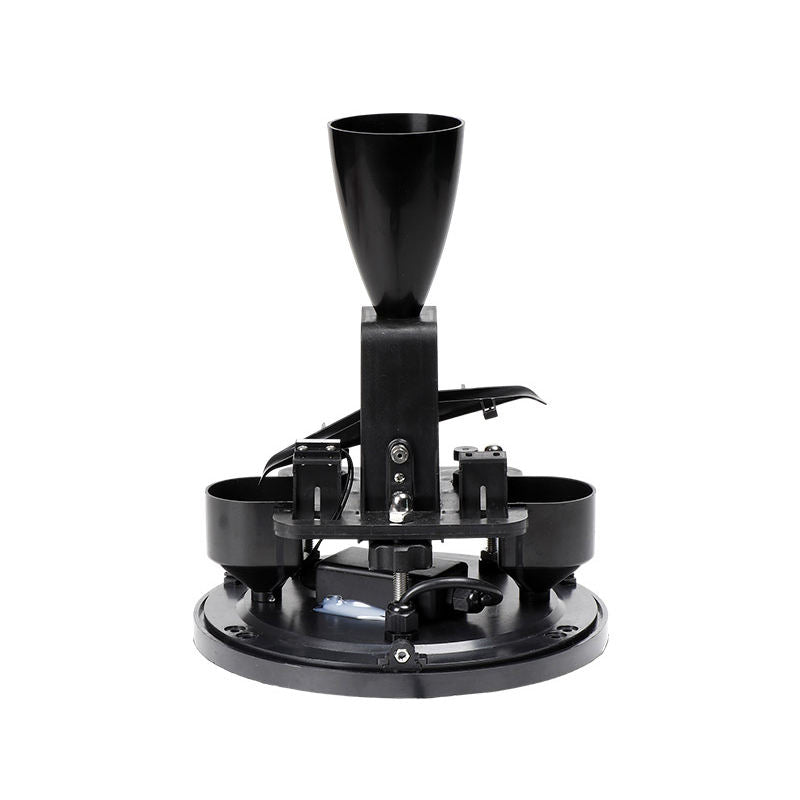

  • Sensitive, stable tipping mechanism – Flip parts respond sensitively for stable, reliable operation.
  • Four signal output modes – Pulse, RS485 Modbus-RTU, 4–20 mA current or 0.4–2 V voltage, each covering 0–2000 mm.
  • Built for weather stations – For meteorological and hydrological stations, agriculture and forestry precipitation monitoring.
SKU: SEN101-2008 Datasheet
Made to Order Assembled after your order — lead time shown on this page
View full details

Rain Gauge

Features

0.2 mm rainfall resolution

Each tipping-bucket pulse represents 0.2 mm of rainfall, with ≤±3% accuracy.

Stainless-steel construction

Stainless-steel shell and rain-bearing mouth with a smooth finish for low stagnation error.

Anti-clogging funnel mesh

Mesh stops leaves and debris from blocking the rainfall inlet.

Sensitive, stable tipping mechanism

Flip parts respond sensitively for stable, reliable operation.

Four signal output modes

Pulse, RS485 Modbus-RTU, 4–20 mA current or 0.4–2 V voltage, each covering 0–2000 mm.

Built for weather stations

For meteorological and hydrological stations, agriculture and forestry precipitation monitoring.

The SEN101-2008 Tipping Bucket Rain Gauge is a precision instrument designed to measure rainfall. It converts rainfall into digital data, outputting information in the form of switch values to facilitate transmission, processing, recording, and display. This device is widely used in meteorological stations, hydrological stations, agriculture, and forestry to monitor precipitation levels, intensity, and duration. It provides reliable data for environmental monitoring and is essential for departments involved in weather and water resource management.

  • High precision and good stability.
  • The mesh of the funnel is designed to prevent debris such as leaves from blocking the rainfall.
  • Flip parts are sensitive to flip, stable performance and reliable work.
  • Stainless steel shell, exquisite appearance and good quality.
  • The rain-bearing mouth is made of stainless steel skin, which has high smoothness and little error in stagnation.
RS485/4-20mA Stainless Steel Tipping Bucket Rain Gauge SensorRS485/4-20mA Stainless Steel Tipping Bucket Rain Gauge Sensor

Specifications

Models

Measurement

Rain opening size φ200 mm
Sharp edge 40–45°
Rain intensity range ≤4 mm/min (maximum 8 mm/min)
Resolution 0.2 mm
Accuracy ≤±3%

Output

Pulse signal 1 pulse represents 0.2 mm rainfall
Digital signal (RS485) Standard Modbus-RTU, 9600 baud, no parity, 8 data bits, 1 stop bit, default address 01
Current signal 4–20 mA, corresponding to 0–2000 mm
Voltage signal 0.4–2 V DC, corresponding to 0–2000 mm
Sending method Two reed switches or on/off signal output

Electrical

Supply voltage 12–24 V DC

Physical

Size Φ216 × 460 mm
Housing Stainless steel

Environment

Ambient temperature −10 to 50 °C
Relative humidity <95% (40 °C)
