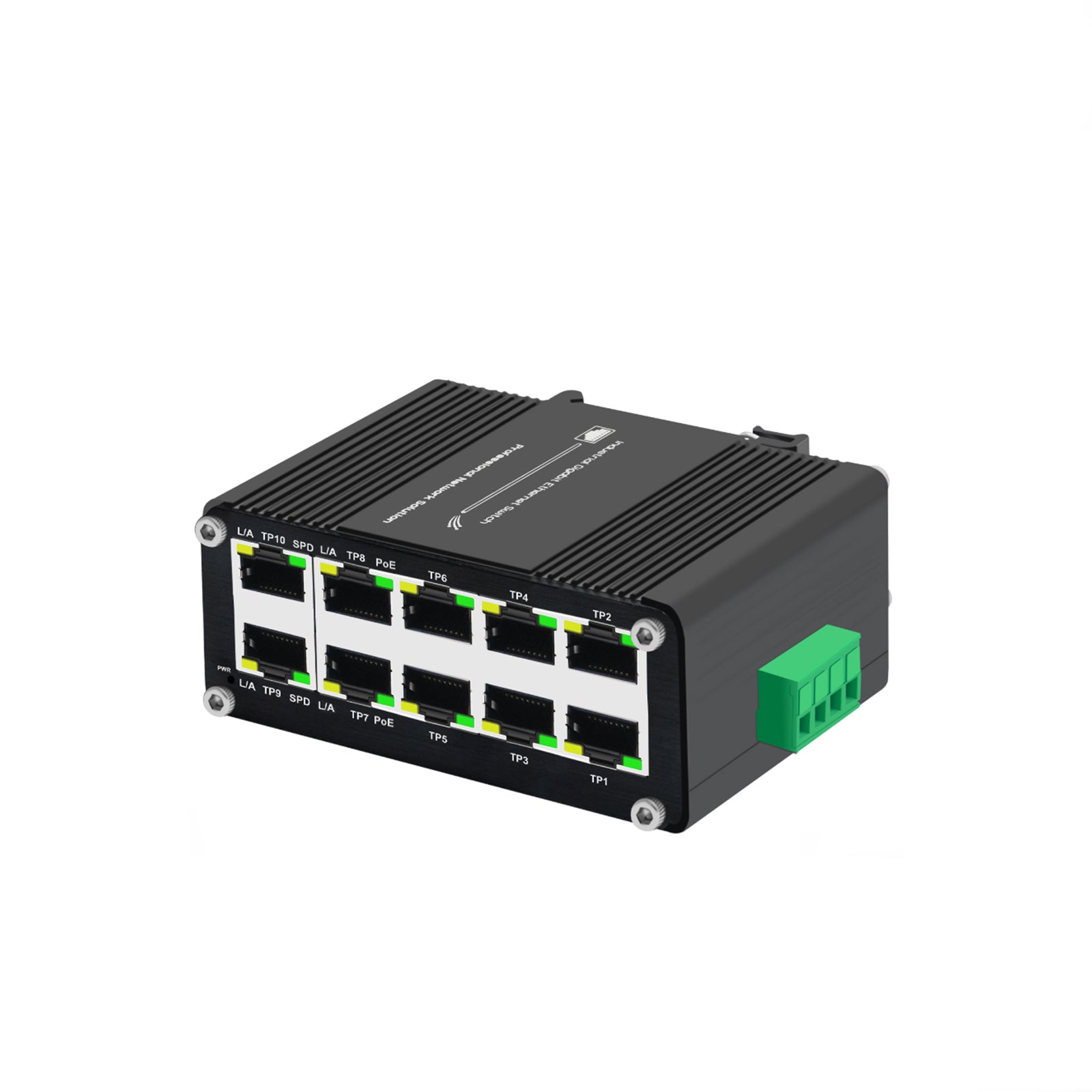

Mini Industrial 10-Port Gigabit PoE Switch 12–48V DC Input

The SW108GVB-POE is a compact industrial Gigabit switch with 8 PoE+ ports and 2 uplink ports, designed for space-constrained installations. It delivers wire-speed performance and provides up to 240W total PoE output (IEEE 802.3at) to power various devices in harsh environments.

With 8×10/100/1000BASE-T PoE+ ports and 2×Gigabit RJ45 uplink ports, it supports a 12–48V DC power input, offering both redundancy and flexibility. The rugged design ensures stable operation under demanding industrial conditions.

• 10 Gigabit RJ45 ports, with up to 8 PoE+ outputs
• 240W total PoE budget, 240W(48V DC), 90W(24V DC), 60W(12V DC)
• Wide voltage input (12–48VDC) + reverse polarity protection
• Industrial-grade metal enclosure (IP40)
• Extreme temperature tolerance (-40°C ~ 80°C)
• Standards-compliant (IEEE 802.3af/at, 802.3az, 802.3x)

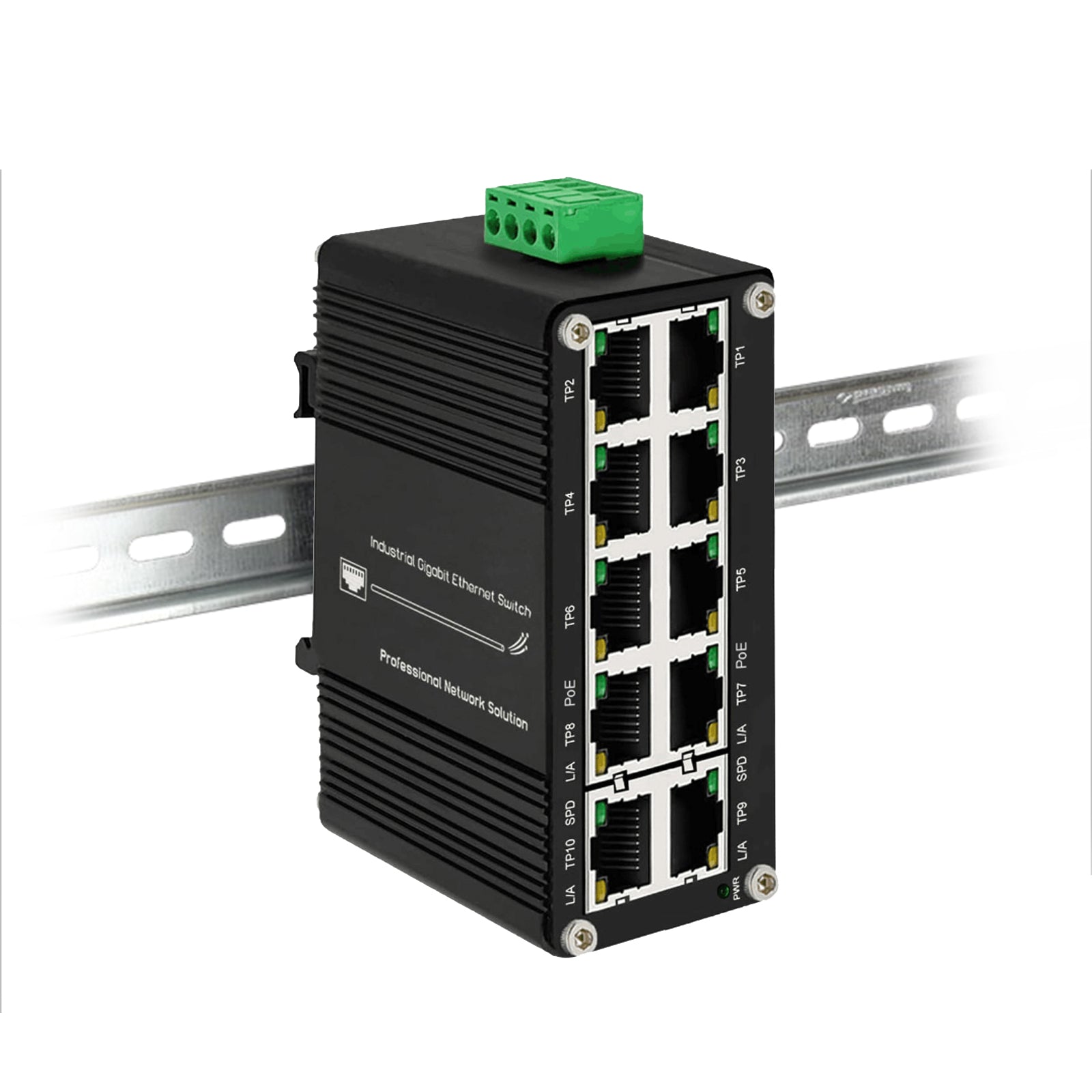

• DIN-rail mountable, fanless design
